Detailinformationen |
|||
| Netzwerk: | 2,4-GHz-WLAN (IEEE 802.11 b/g/n) | Rote LED blinkt: | Strom OK, Warten auf WLAN-Verbindung |
|---|---|---|---|
| Leistungstyp: | Wiederaufladbare 18650-Batterie oder festes Kabel AC12V-24V | VERBRAUCH: | Arbeitsmodus: 170 mA, Standby-Modus: 200 μA |
| Gewicht: | 600 g | Abholbereich: | 5 Meter |
| Arbeitsfeuchtigkeit: | < 95% | Nachrichtenfunktion: | Stützmitteilung, die Funktion verlässt |
| Verschluss: | 1/25~1/100.000 pro Sekunde | RELATIVE FEUCHTIGKEIT: | 85 % nicht kondensierend |
| IR -Entfernung: | 3 Meter | Bildsensor: | SC2335/SC233A |
| Horizontalwinkel: | Horizontalwinkel 140 | Erkennungswinkel: | 110° |
| Funktion: | 3G/4G/GPS/WIFI | Leistung: | DC12V/2A |
| Bild-Einstellung: | Unterstützt HD/SD. Unterstützt Spiegel | Wasserdichte Rate: | IP55 |
| Kamera: | 1 Megapixel, OV9732 (125°Weitwinkel) | Weitwinkel: | 130 Grad |
| Bildschirmgröße: | 7 Zoll | Kamera-Eingabe Auflösung: | AHD1080P/720P/CVBS |
| Sensortyp: | Zählendes Video, 98% Genauigkeit | Hostdimensionen: | 200 (L) x 187 (B) x 62 (H) mm |
| Kompression: | H.265 | Spannungseingang: | Anpassung an 8 bis 36 V Ultra-Wide |
| Softwareunterstützung: | CMSV6 und unsere private Plattform | Garantie: | 12 Monate |
| SDK: | Kostenloses SDK für die zweite Entwicklung | WIFI-Download: | Unterstützung |
| Betriebsoberfläche: | Grafische Benutzeroberfläche (OSD-Menü) | Anpassung: | Ja |
| Wasserdicht: | IP69K | Stoßfest: | Doppel-Anti-Vibration |
| Funktionen: | Personenzähler, 3G, GPS, G-Sensor, UPS | ||
| Hervorheben: | 4G mobile DVR for passenger coaches,4G mobile DVR for buses with stable performance,4G mobile DVR for dangerous goods vehicles |
||
Produkt-Beschreibung

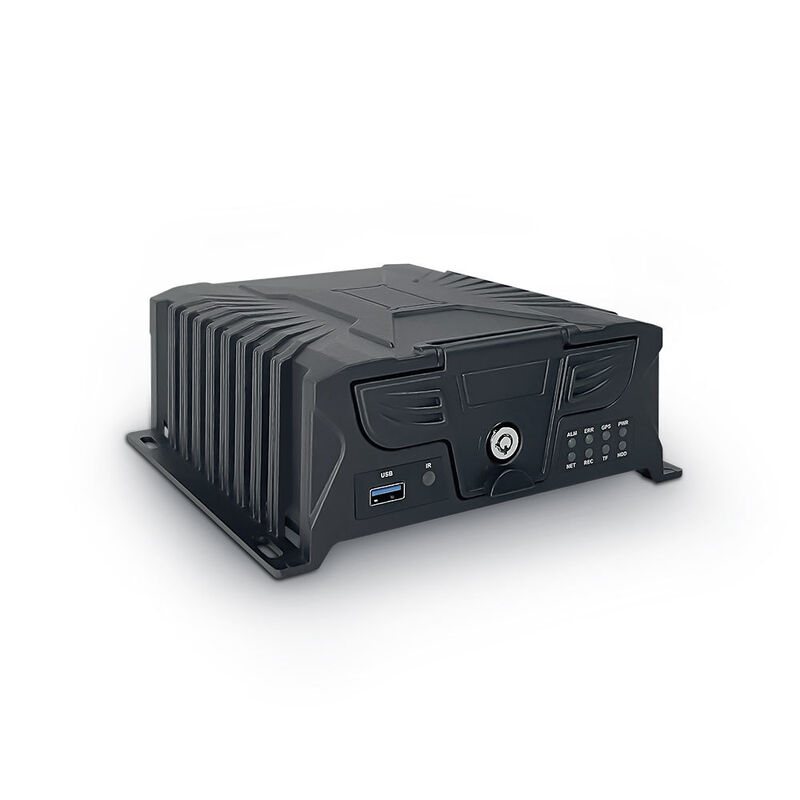

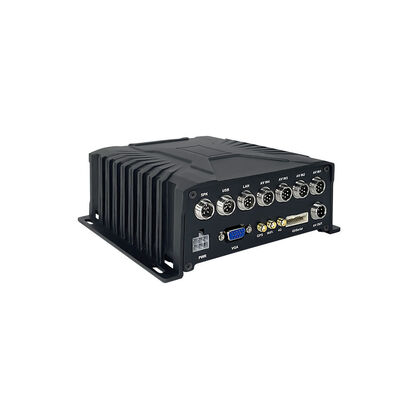

4CH 4G WiFi HDD/SSD MDVR specification sheet
Model:OX-MD264
1.1 Product features
This series of products is a fully functional Hard Disk Driver 4G mobile DVR designed for the mobile surveillance market. Supports wide power voltage input, supports high-capacity HDD/SSD and TF card recording; Use professional and reliable aviation plug connector; High appearance, enough materials, good heat dissipation; The device has powerful functions, rich interfaces and low power consumption; Simple installation, easy operation, and extremely stable; widely used in passenger Coach, buses, taxis, school buses, logistics vehicles, dangerous goods vehicles, Sedan cars, ships, etc.
The detailed features are as follows:
- Industrial design, stable and reliable, easy to install
- Video adopts the international mainstream H.265 encoding format, and the audio adopts G711a encoding. It can support up to 4 channels.
- Professional vehicle power supply, can adapt to 8 to 36V ultra-wide voltage input, with multiple protection circuits such as overload/short circuit/reverse connection
- Highly reliable aviation plug input and output interface, easy to install and plug, and stronger Vandal-proof performance
- Support 4 channels of video and audio input, frame rate and image quality are adjustable
- Support 1x2.5inch HDD/SSD +1xTF Card Storage
- Built-in Farad capacitor. The video content has power-off protection function
- Support video loss alarm function
- Independent delay Power shutdown, can support the system to continue running after the vehicle is turned off, the delay time can be set by yourself
- Supporting CMS client platform, providing multiple functions such as playback, analysis, management, etc
- Support HDD/SSD, TF card and U disk to upgrade firmware, support network remote firmware upgrade.
- Supports 2 USB ports, the front can be connected to a USB drive to export videos or upgrade firmware, and the back can be connected to a fireproof box to backup videos
- Support 8 x IO alarm input, 2 x IO alarm output
- Support 2 x RS232 and 1 x RS485
- Insert the intercom handle for two-way communication between the platform and the device
- Support pulse vehicle speed. Optional
- Support 4G, GPS, LAN(RJ45)
- Optional WiFi function
